Agulhas Current#



Agulhas results

Compared products #

At 00m

  • GlobCurrent Total
  • WOC inertial global 0m

At 15m

  • GlobCurrent Geostrophic
  • GlobCurrent Total
  • WOC BFN-QG
  • WOC inertial global 15m
  • NeurOST
  • OSCAR

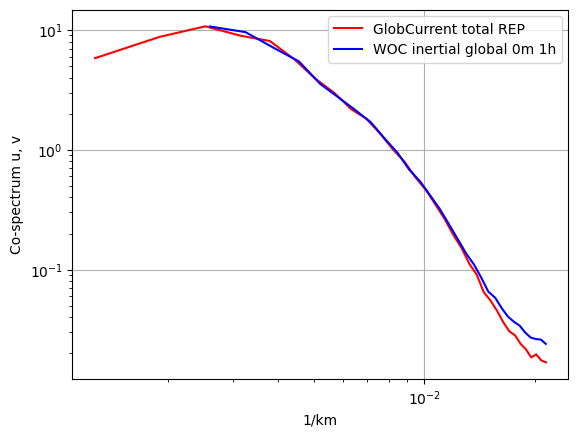

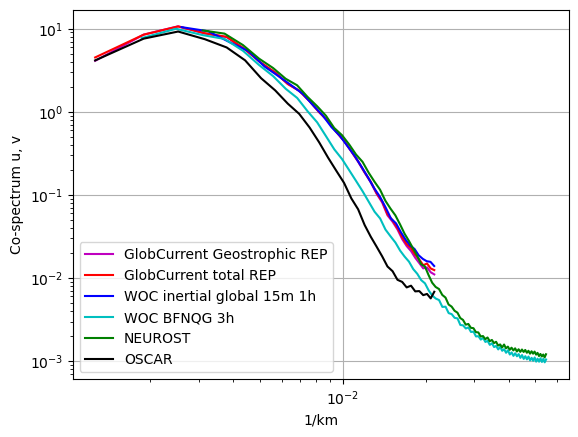

1. Spectrum

▶️ At 0m

png

▶️ At 15m

png



2. Eulerian RMS

▶️ At 0m

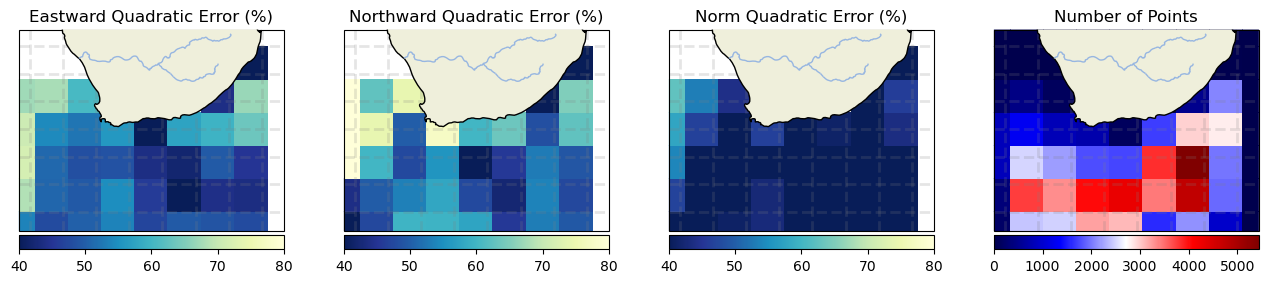

Norm errors

Mean Norm Quadratic Error (%) Norm Correlation Norm Explained Variance (%) Norm RMSD Number of Points
GlobCurrent Total 36.938 0.799 68.680 0.244 37440.000
WOC inertial global 00m 1h 34.724 0.812 71.705 0.230 37440.000

Eastward errors

Mean Eastward Quadratic Error (%) Eastward Correlation Eastward Explained Variance (%) Eastward RMSD Number of Points
GlobCurrent Total 49.368 0.867 73.832 0.239 37440.000
WOC inertial global 00m 1h 46.755 0.881 79.632 0.227 37440.000

Northward errors

Mean Northward Quadratic Error (%) Northward Correlation Northward Explained Variance (%) Northward RMSD Number of Points
GlobCurrent Total 52.518 0.851 71.616 0.236 37440.000
WOC inertial global 00m 1h 50.555 0.863 75.159 0.227 37440.000

Standard deviation error

STD Direction difference Number of Points
GlobCurrents Total 43.497 37440.000
WOC inertial global 00m 1h 43.501 37440.000

Binned plots

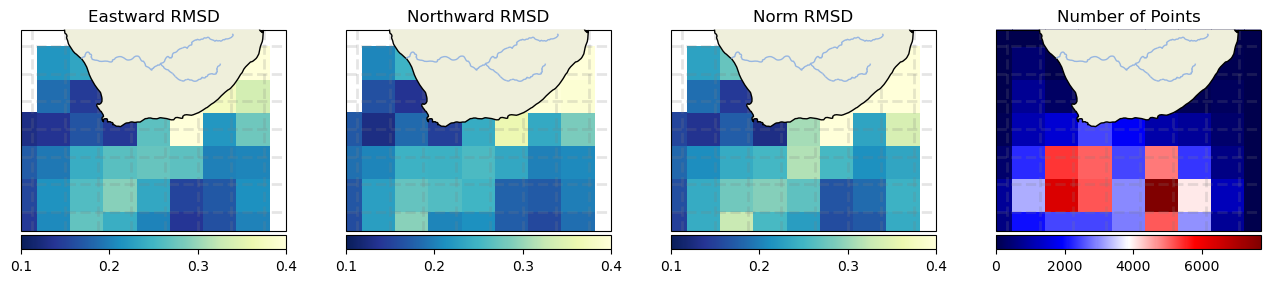

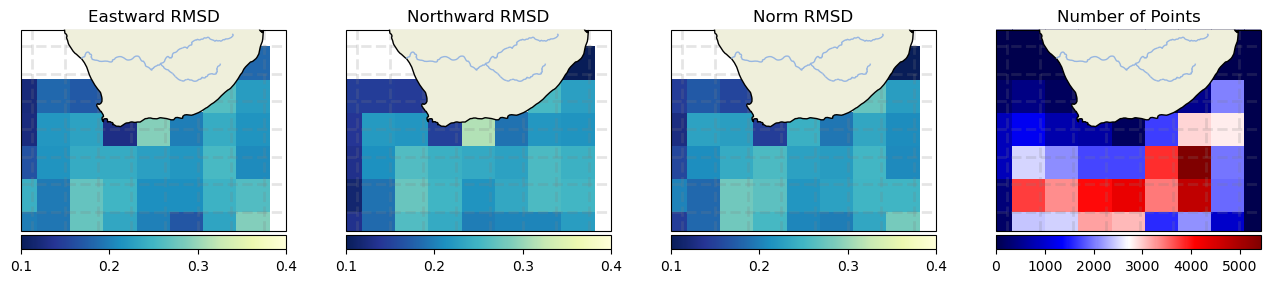

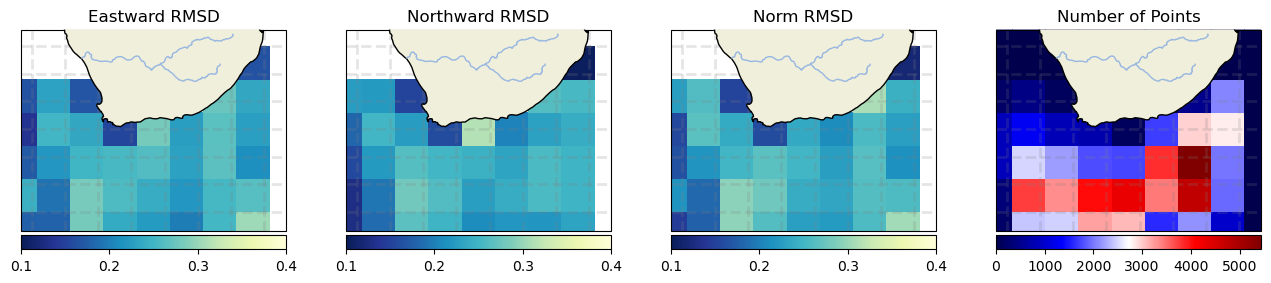

Results for diagnostic RMSD

GlobCurrents Total

png

WOC inertial global 00m 1h

png

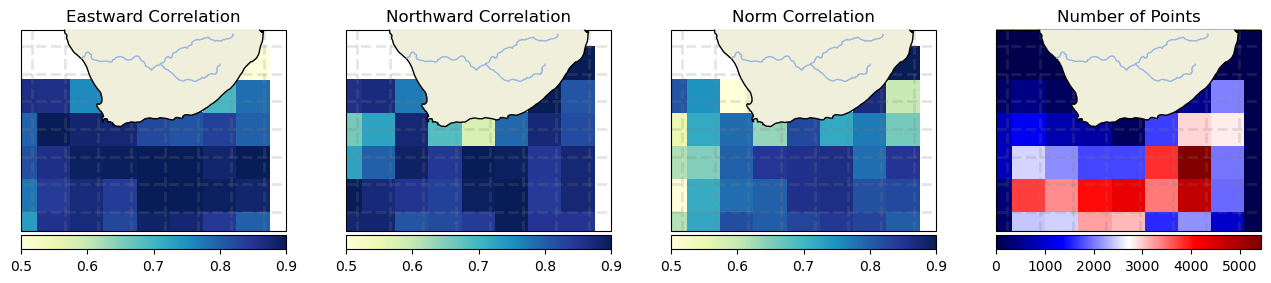

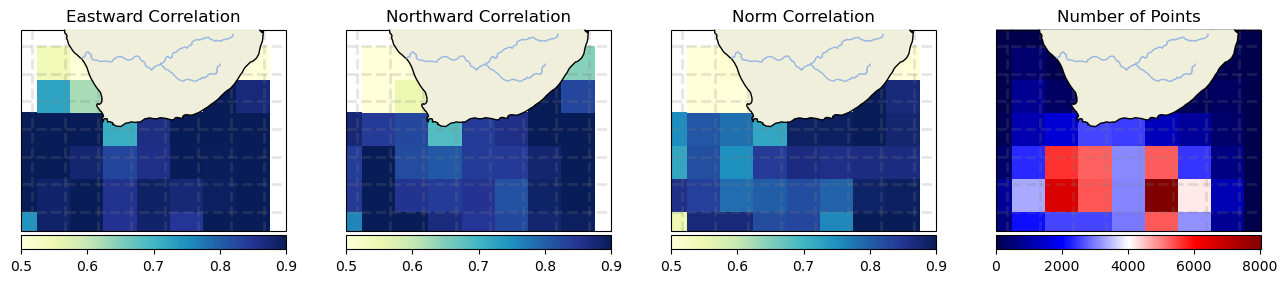

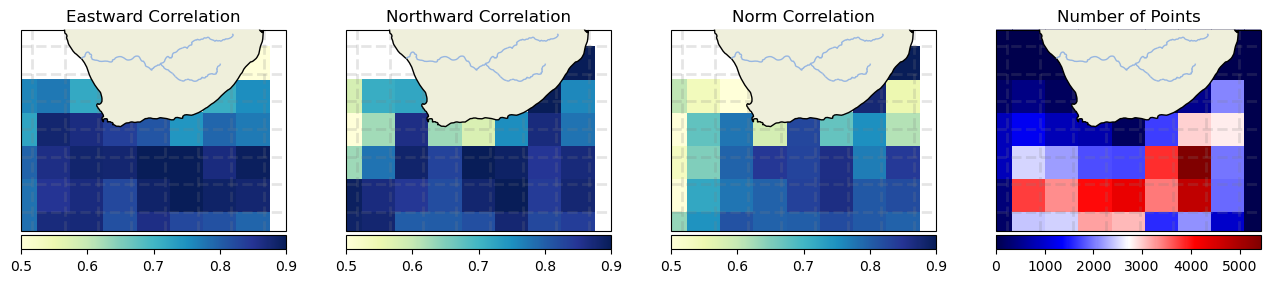

Results for diagnostic Correlation

GlobCurrents Total

png

WOC inertial global 00m 1h

png

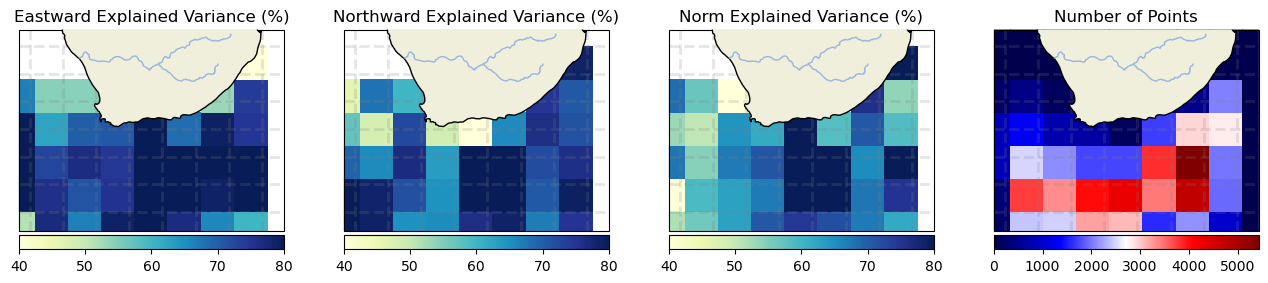

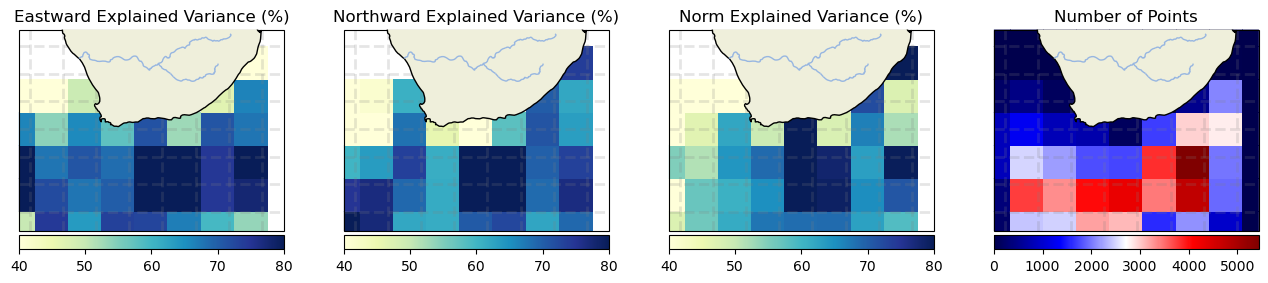

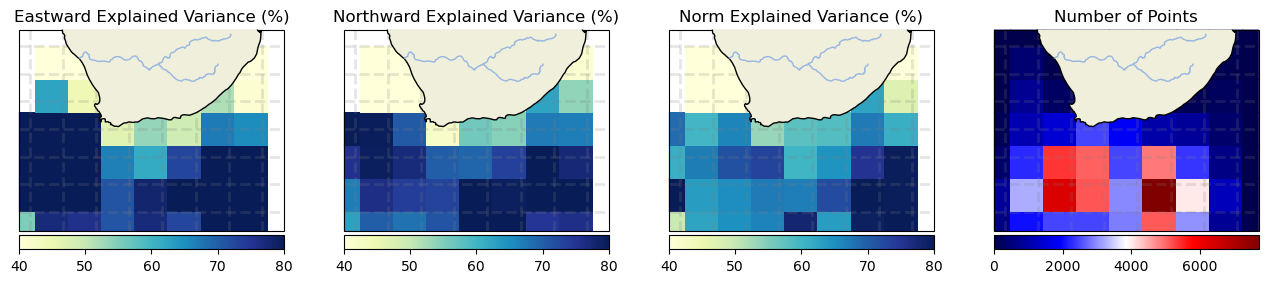

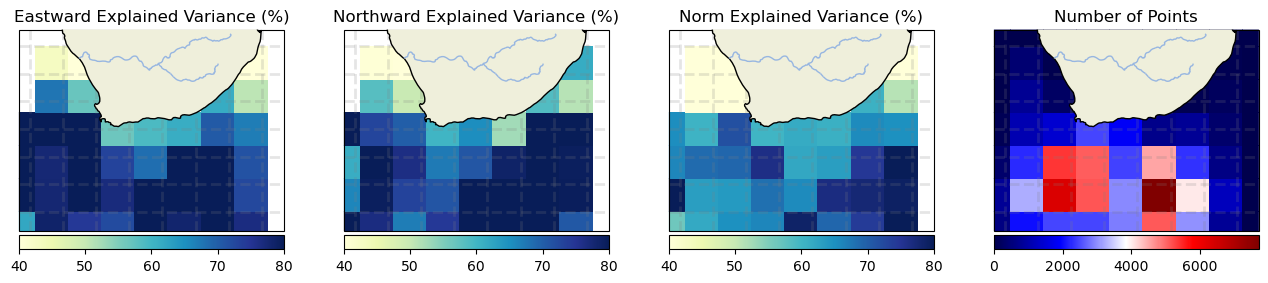

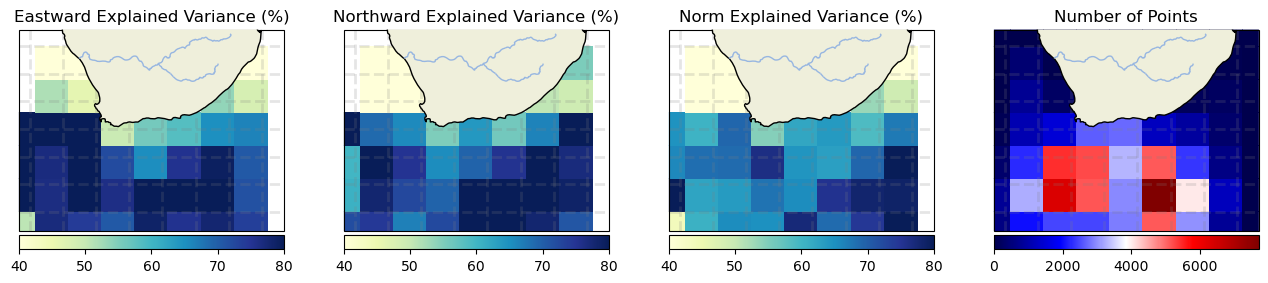

Results for diagnostic Explained Variance (%)

GlobCurrents Total

png

WOC inertial global 00m 1h

png

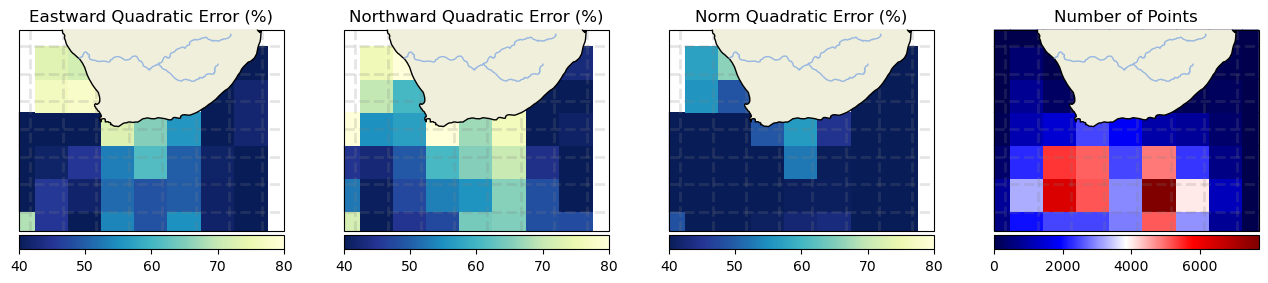

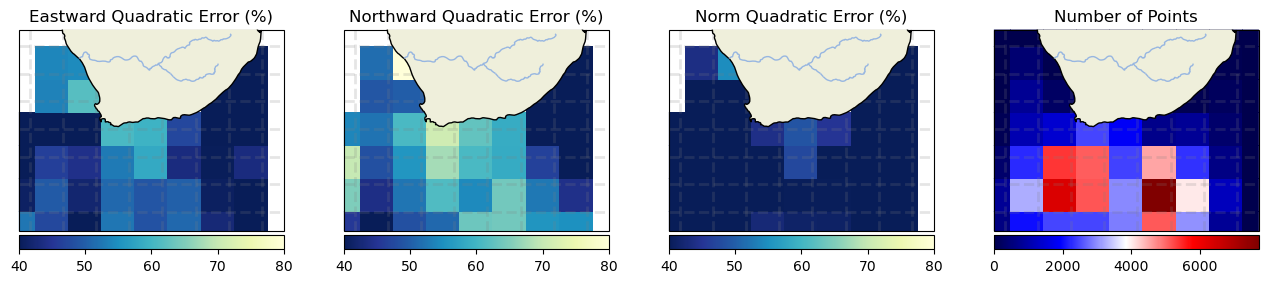

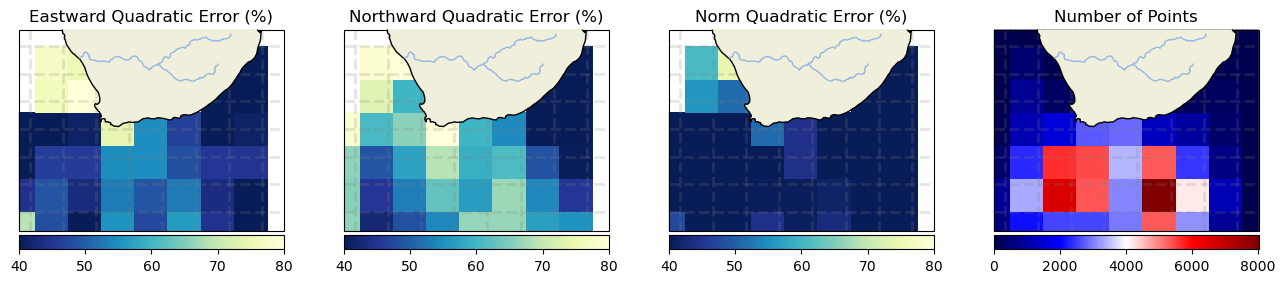

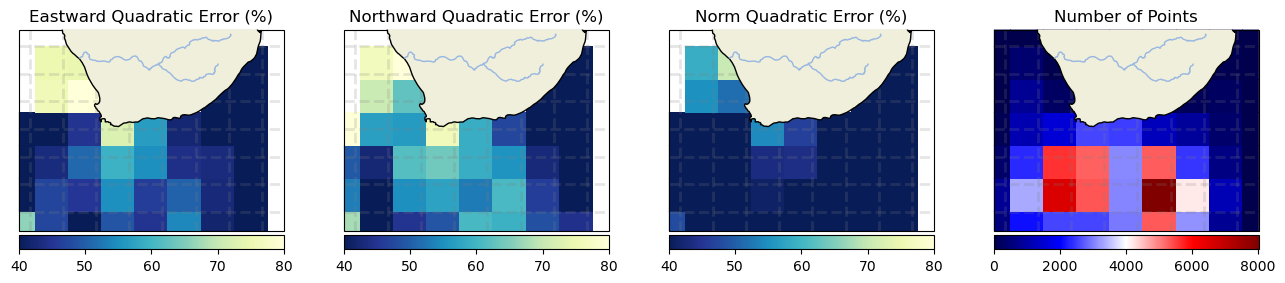

Results for diagnostic Quadratic Error (%)

GlobCurrents Total

png

WOC inertial global 00m 1h

png

▶️ At 15m

Norm errors

Mean Norm Quadratic Error (%) Norm Correlation Norm Explained Variance (%) Norm RMSD Number of Points
GlobCurrent Geostrophic 37.299 0.829 69.561 0.243 44751.000
GlobCurrent Total 36.555 0.835 69.632 0.238 43190.000
WOC inertial global 15m 1h 35.879 0.835 69.976 0.233 43190.000
WOC BFN-QG 3h 36.708 0.837 69.562 0.239 43200.000
NeurOST 36.237 0.848 82.632 0.236 44738.000

Eastward errors

Mean Eastward Quadratic Error (%) Eastward Correlation Eastward Explained Variance (%) Eastward RMSD Number of Points
GlobCurrent Geostrophic 47.463 0.882 75.469 0.231 44751.000
GlobCurrent Total 46.562 0.886 76.783 0.226 43190.000
WOC inertial global 15m 1h 45.115 0.895 78.858 0.219 43190.000
WOC BFN-QG 3h 46.636 0.887 76.638 0.227 43200.000
NeurOST 46.866 0.888 84.905 0.228 44738.000

Northward errors

Mean Northward Quadratic Error (%) Northward Correlation Northward Explained Variance (%) Northward RMSD Number of Points
GlobCurrent Geostrophic 55.176 0.836 73.912 0.238 44751.000
GlobCurrent Total 54.040 0.842 75.330 0.233 43190.000
WOC inertial global 15m 1h 53.252 0.848 77.290 0.230 43190.000
WOC BFN-QG 3h 51.652 0.858 74.578 0.223 43200.000
NeurOST 51.782 0.862 81.058 0.224 44738.000

Standard deviation error

STD Direction difference Number of Points
GlobCurrent Geostrophic 42.670 44751.000
GlobCurrent Total 42.329 43190.000
WOC inertial global 15m 1h 42.313 43190.000
WOC BFN-QG 3h 43.488 43200.000
NeurOST 43.268 44738.000

Binned plots

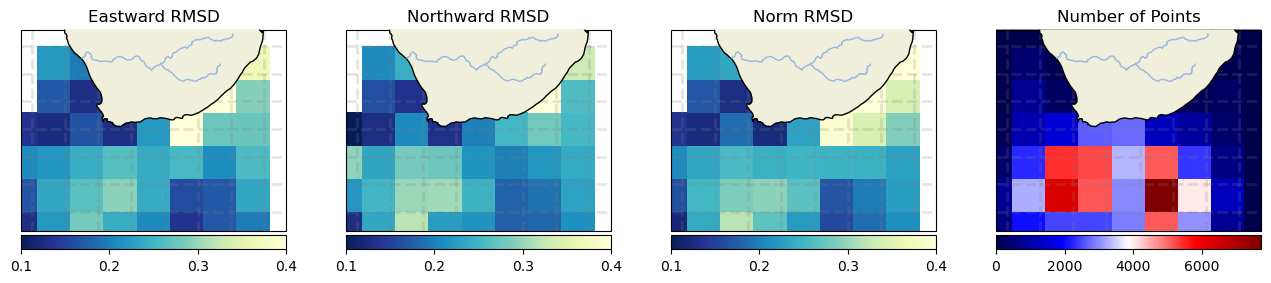

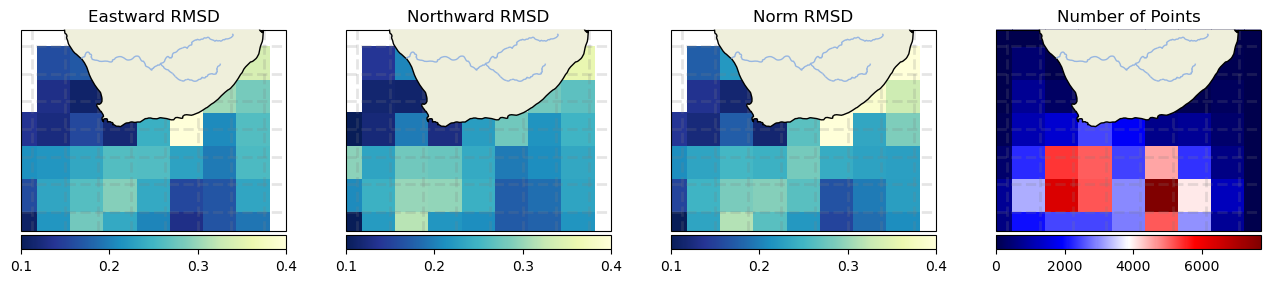

Results for diagnostic RMSD

GlobCurrents Geostrophic

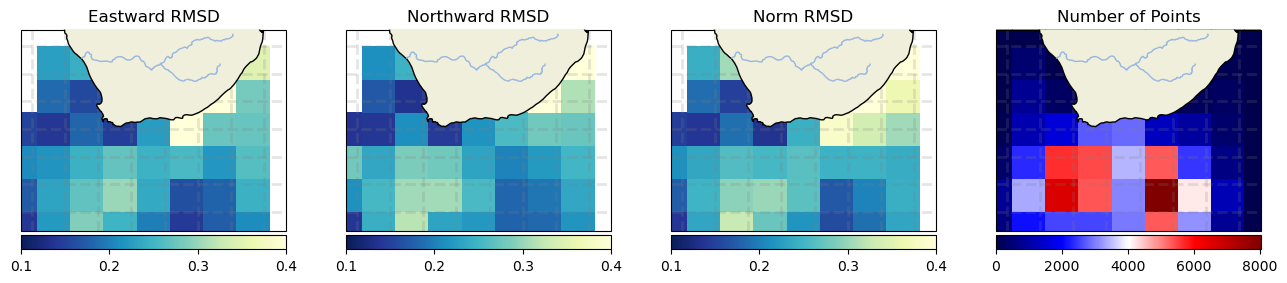

png

GlobCurrents Total

png

WOC inertial global 15m 1h

png

WOC BFN-QG 3h

png

NeurOST

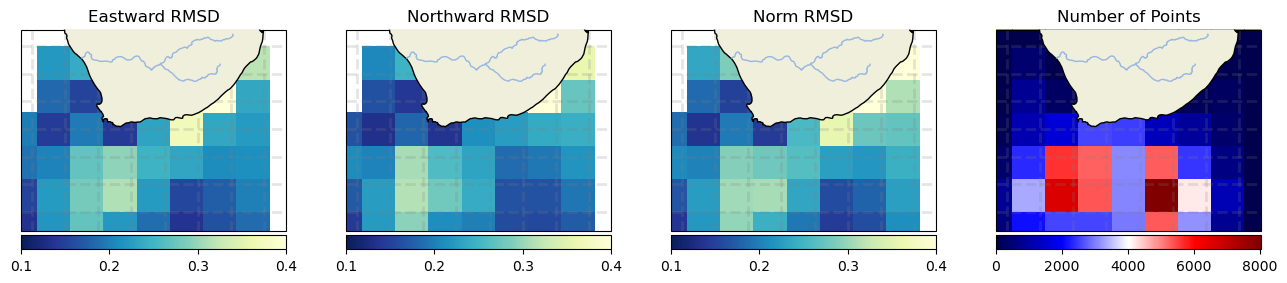

png


Results for diagnostic Correlation

GlobCurrents Geostrophic

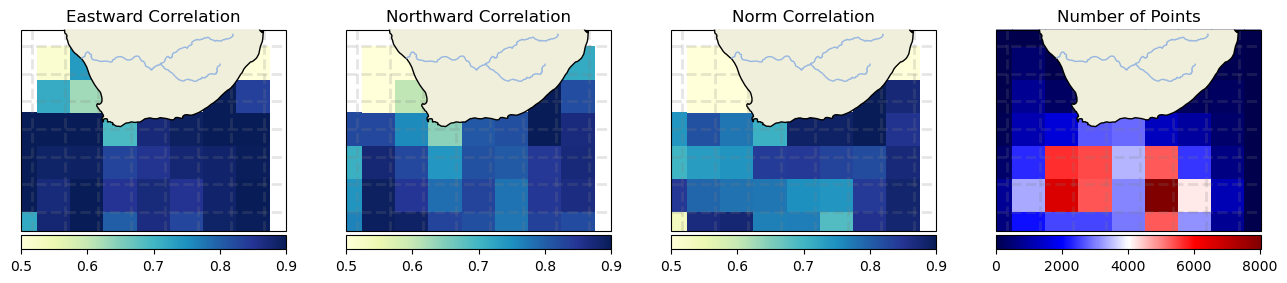

png

GlobCurrents Total

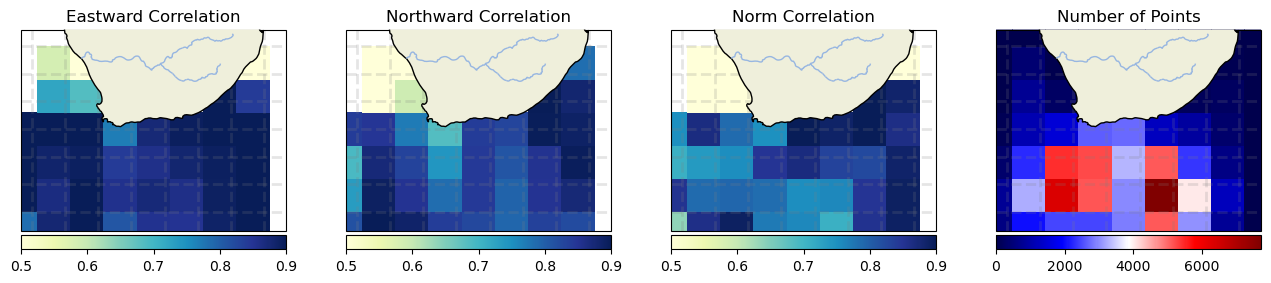

png

WOC inertial global 15m 1h

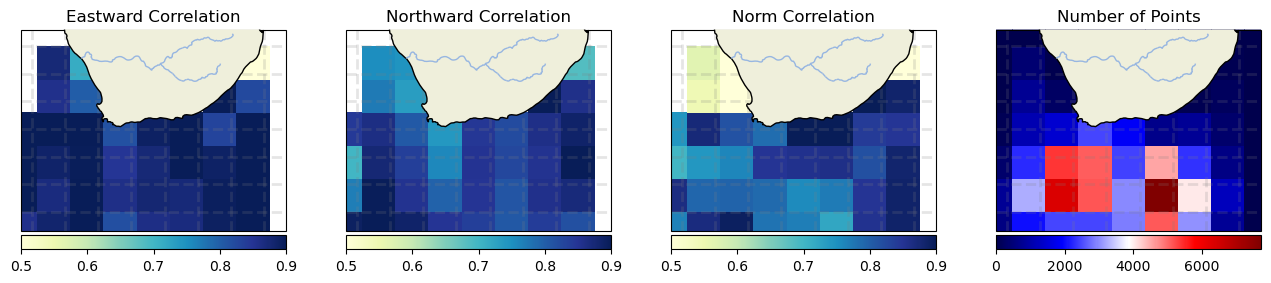

png

WOC BFN-QG 3h

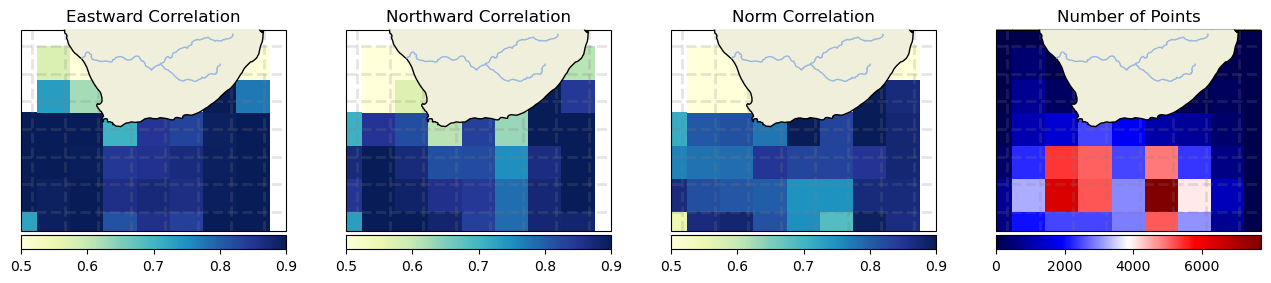

png

NeurOST

png

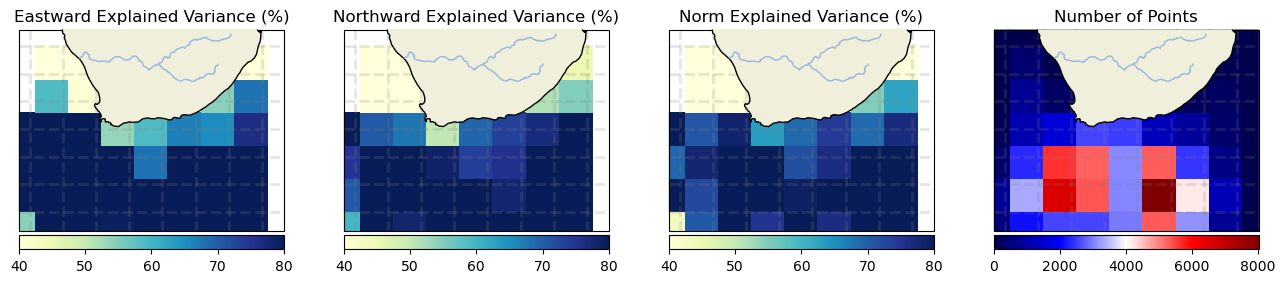

Results for diagnostic Explained Variance (%)

GlobCurrents Geostrophic

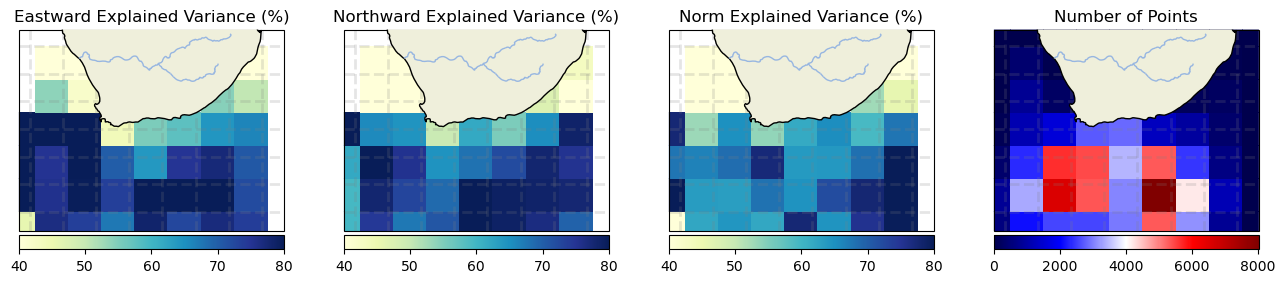

png

GlobCurrents Total

png

WOC inertial global 15m 1h

png

WOC BFN-QG 3h

png

NeurOST

png


Results for diagnostic Quadratic Error (%)

GlobCurrents Geostrophic

png

GlobCurrents Total

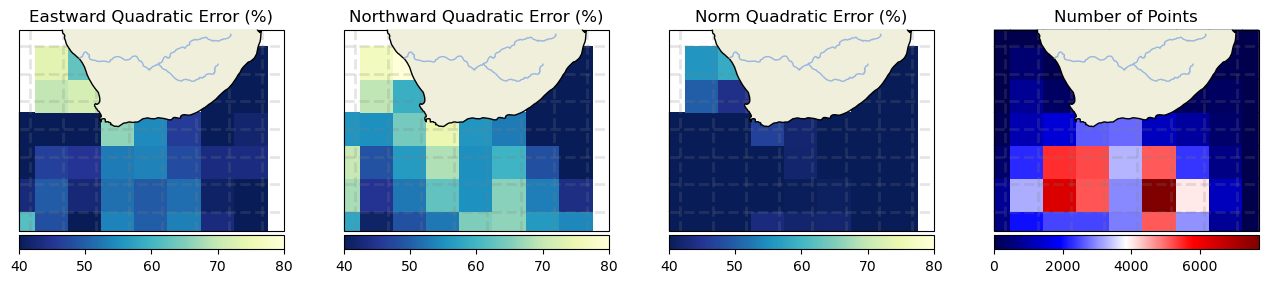

png

WOC inertial global 15m 1h

png

WOC BFN-QG 3h

png

NeurOST

png

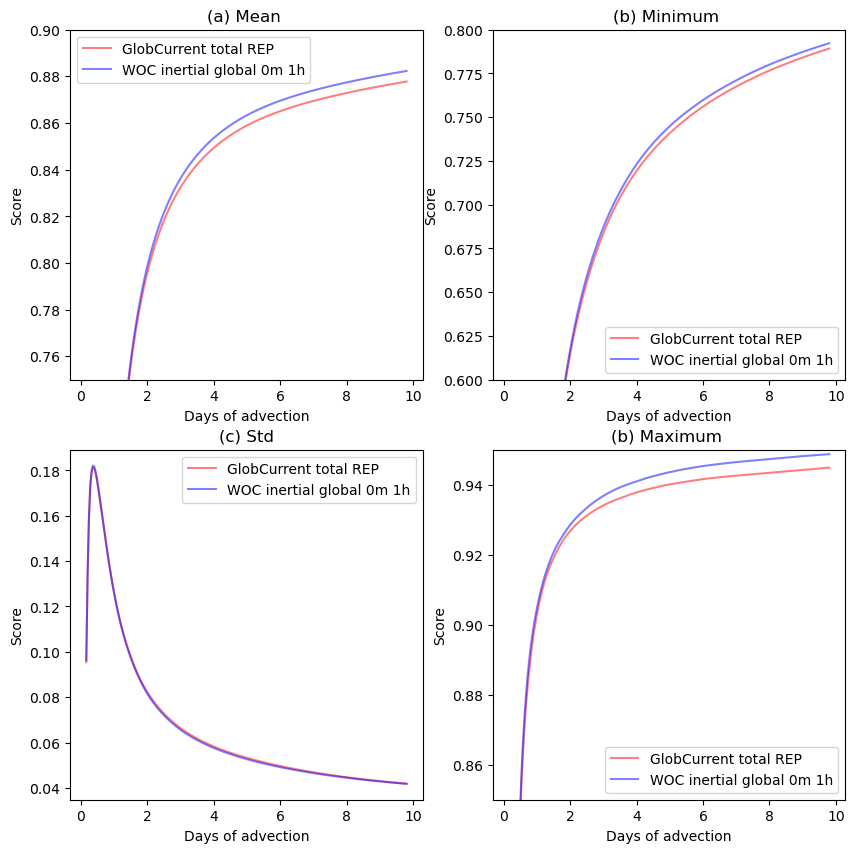

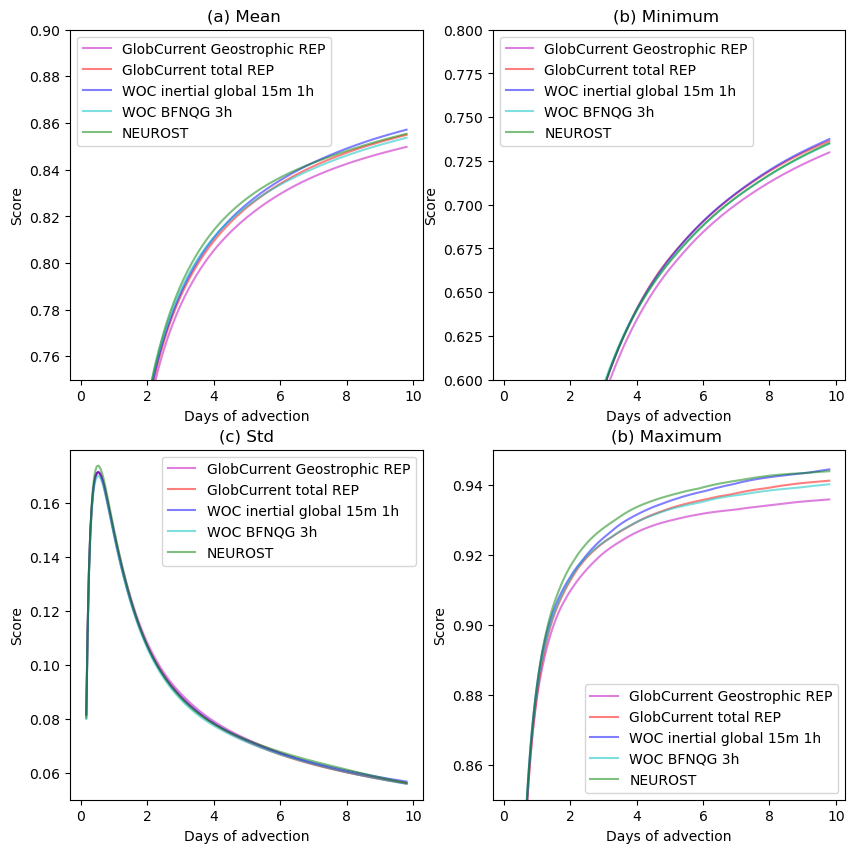

3. Lagrangian Cumulative Distance

▶️ At 0m


<Figure size 640x480 with 0 Axes>

png

▶️ At 15m


<Figure size 640x480 with 0 Axes>

png

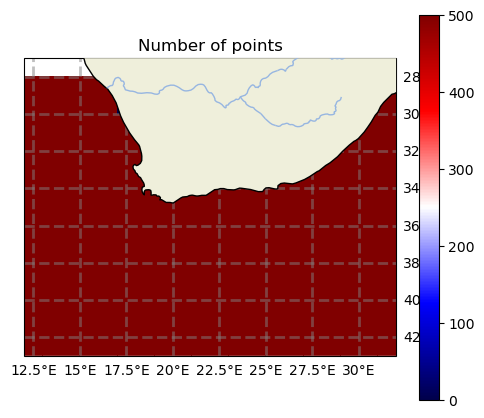

4. Fronts and currents consistency

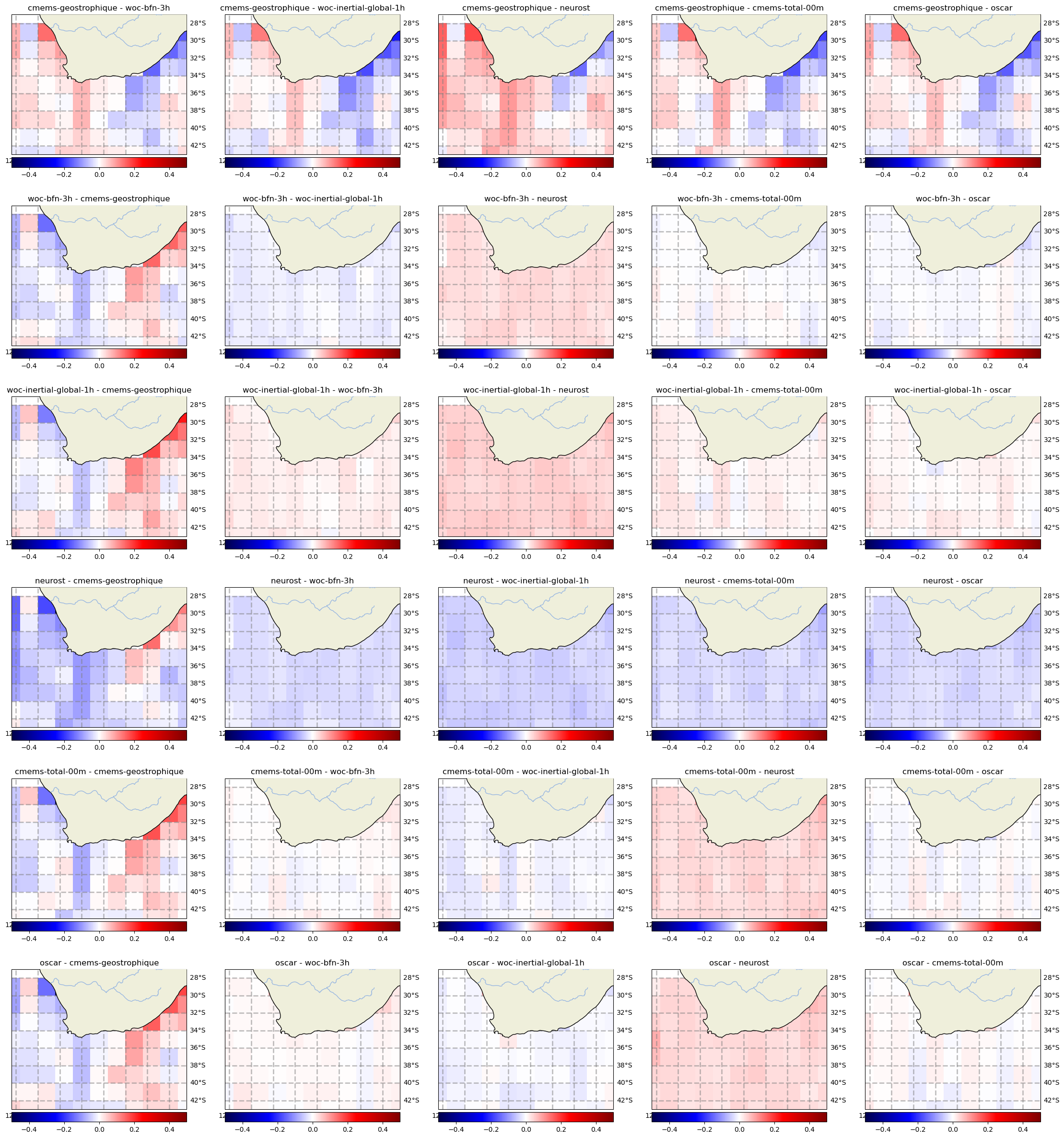

▶️ Maps

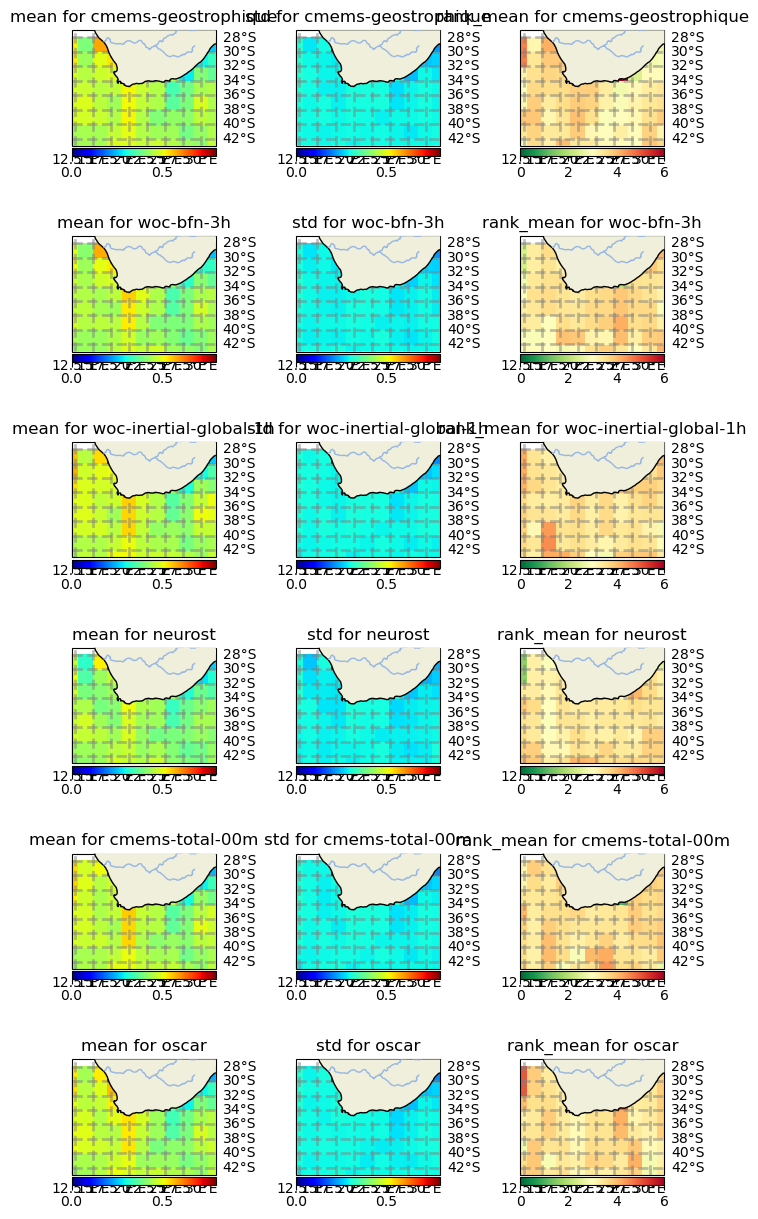

(<Figure size 3000x1500 with 36 Axes>,
 <Figure size 3000x3000 with 60 Axes>,
 <Figure size 600x500 with 2 Axes>)

png

png

png
